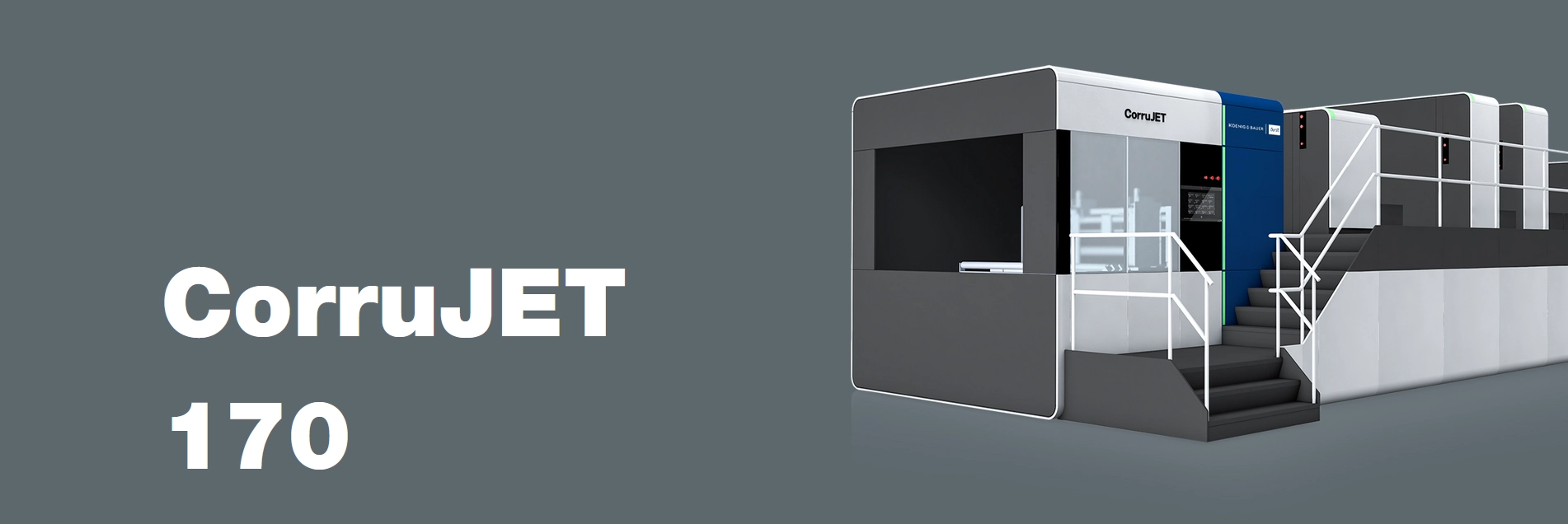

CorruJET 170
Highest volume.
Best of both worlds.
Built for customers demanding high volumes with all the capabilities to combine the best of flexo-printing with world-beating digital quality and productivity.
The CorruJET 170 delivers high production volume in excess of 1.5mio sqm per month. Hybrid capabilities utilizing digital printing in combination with flexo towers. Extremely sharp reproduction detail. Food-safe water-based inks to meet current and future regulatory and environmental standards.
Engineered for the highly efficient production of corrugated sheets with top-quality digital printing. Attain perfection with every print.
Our promise to you
This high-quality press is renowned for its durability. To ensure the highest performance for the foreseeable and untapped future of possibilities.
Developed specifically for the corrugated industry, the CorruJET 170 is engineered for the highly efficient production of corrugated sheets with top-quality digital printing.
Easy to use
This unique concept for digital direct printing on corrugated board combines the latest technologies and functionalities with simple and intuitive handling.
Exceptional performance
Operating with a maximum production speed of 5,500 sheets/hour, the CorruJET 170 is able to process corrugated boards up to a maximum thickness of 8 mm.

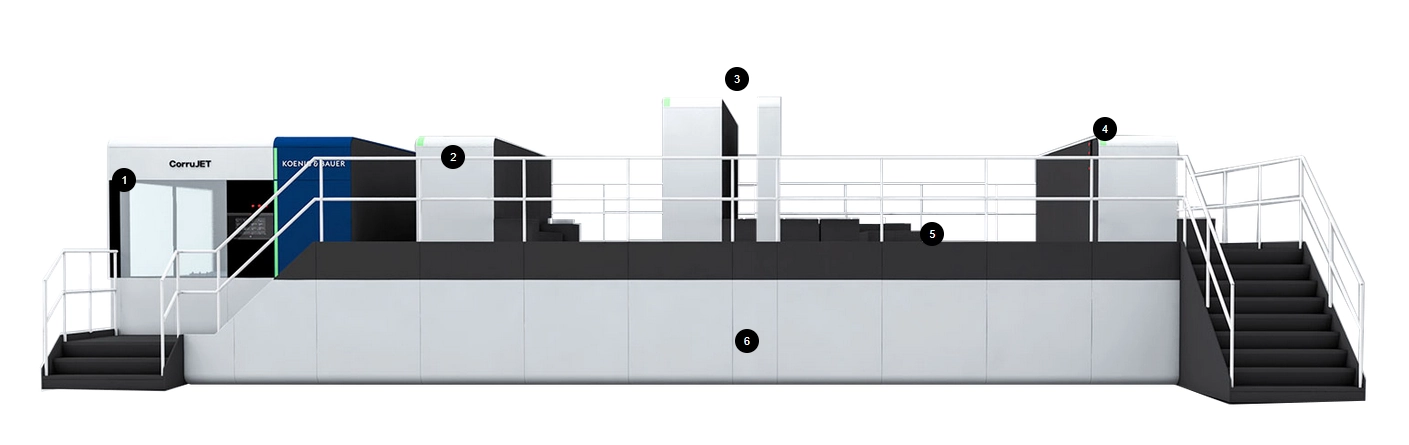

All you need
for digital post-printing onto corrugated board
- Bottom Feeder
- Non crush
- Based on CorruCut Flexo printing station
- Spot Pre-coating possible
- Based on RotaJET Array
- Fuji Dimatix-Samba
- Based on CorruCut Flexo printing station
- Spot Pre-Coating possible
- On Pre-Coater / OPV roller based
- Combined with vacuum belt
- On Pre-Coater / OPV roller based
- Combined with vacuum belt
Media type | Corrugated board (hard-edge-feed) |
Min. sheet size | 750 x 520 mm |
Max. sheet size | 1300 x 1700 mm |
Min. sheet thickness | 1 mm (F-flute) |
Max. sheet thickness | 8 mm (BC-flute) |
Max. stack height | 1100 mm |
Max. print resolution | 1200 dpi |
Printing speed | 5 500 sheets/h |
Colours | 4C CMYK (incl. Precoater) |
Ink type | Water technology (Ink + Precoater) |
Quick Facts
- Up to 5.500 sheets/hour
- Sheets up to 8mm in thickness
- Water-based, food safe inks
- Modular design for four colors
- Fuji Dimatix Saba printing heads with variable drop size
- Inline Pre-coater and Post-coate
- Press control via a flexible Profibus system with touchscreen interface
- Integrated remote support and preductive maintenance features
