The game changer for

Soft Signage & Fabrics

The P5 TEX iSUB is the dye-sublimation printer with an integrated inline fixation (iSUB) for a 1-step direct to fabrics printing process. The Durst iSUB contactless fixing technology ensures excellent color consistency as well as extreme sharpness of detail in images and text, also blurring or bleeding of color is eliminated.

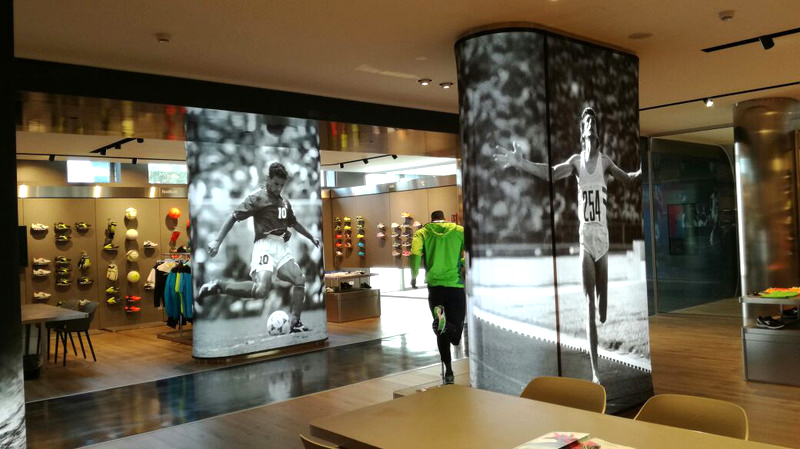

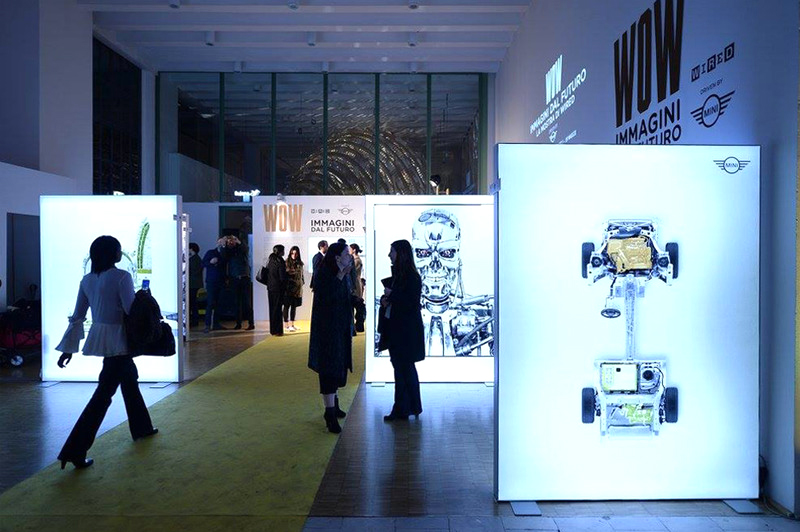

A wide range of applications on polyester material can be implemented with the new dye sublimation printer, such as light box and decorative fabrics including difficult media as blackback and flags.

However, the printer is not limited to direct printing, but transfer papers can also be printed and further processed in the usual way.

For more technical information please visit Durst Virtual Showroom.

DUAL SYSTEM

(Direct & Transfer)

ONE STEP PROCESS

with inline fixation for direct printing

ONE MAN OPERATION

MULTIROLL

SEWING/STICHING UNIT (for saving material by material change)

REDUCED ENERGY CONSUMPTION

INKS

Durst new generation of dye-sub ink, P5 SUBLIFIX, provides optimum performance for a wide range of Soft Signage & Fabrics applications:

– Enhanced color gamut
– Vibrant 4 colors printing
– Light Colors and additional process colors available
– Optimized for dual purpose inline fixation and transfer printing
– Excellent drying properties
– Wide variety of polyester
– Contactless/no bleeding fixation

> SUBLIFIX

SOFTWARE

Durst Software enables to efficiently streamline printing production and processes:

> DURST SMART SHOP
> DURST WORKFLOW
> DURST ANALYTICS

DESCRIPTION

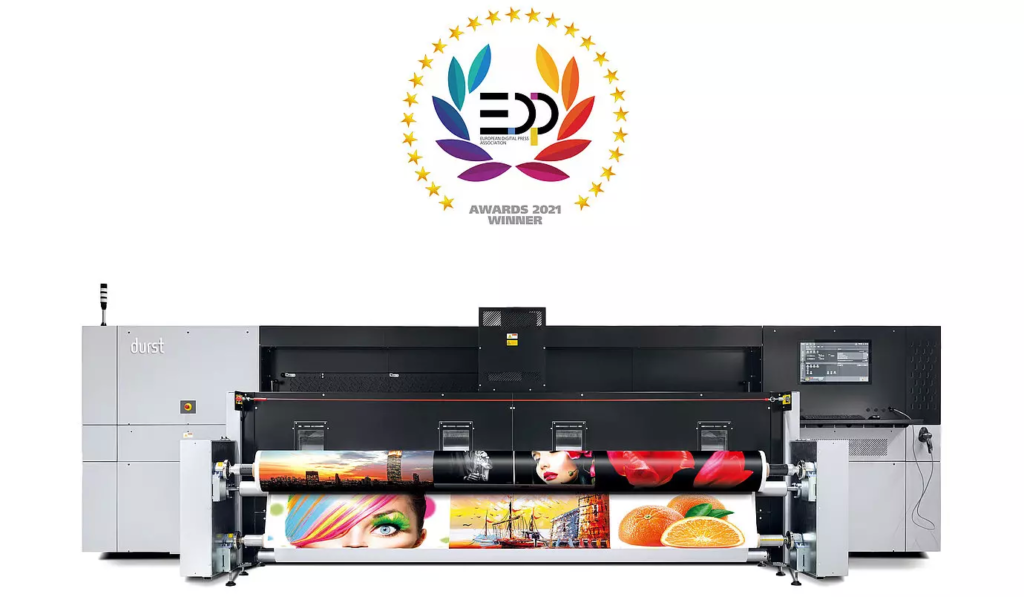

P5 TEX iSUB

The new dye-sublimation printer with an integrated inline fixation (iSUB).

The Durst P5 TEX iSUB is the new large format dye-sublimation printer with an integrated inline fixation (iSUB) technology for a 1-step direct to fabrics printing process up to 337 cm (132.6 in) printing width. The integrated features of multiroll and dual roll printing make the printer very versatile and suitable for many soft signage and fabrics applications. The drying system combined with IR and heated plates is also suitable for transfer paper printing.

TECHNICAL DATA

PRINTING SPECIFICATIONS
Productivity	Up to 345 m²/h (3,710 sq.ft./h)
Resolution	800 x 600 dpi
Drop size modulation	Binary
Printheads	Ricoh Gen5
Standard colors	Cyan, Magenta, Yellow, Black,
Additional color options	Light Cyan, Light Magenta, Orange, Light Black

MEDIA SPECIFICATIONS
Maximum roll width for single roll	3,400 mm (11.15 ft.)
Maximum roll width for dual roll	1,625 mm (64 in.)
Maximum roll weight single roll	160 kg (353 lb)
Maximum roll weight dual roll	200 kg (441 lb)
Maximum roll diameter (Lower or Upper Position)	350 mm (13.7 in.)
Maximum roll diameter (Lower and Upper Position)	Upper Position: 230 mm (9 in.) Lower Position: 350 mm (13.7 in.)
Maximum roll diameter (Lower and Upper Position)	Upper Position: 350 mm (13.7 in.) Lower Position: 230 mm (9 in.)
