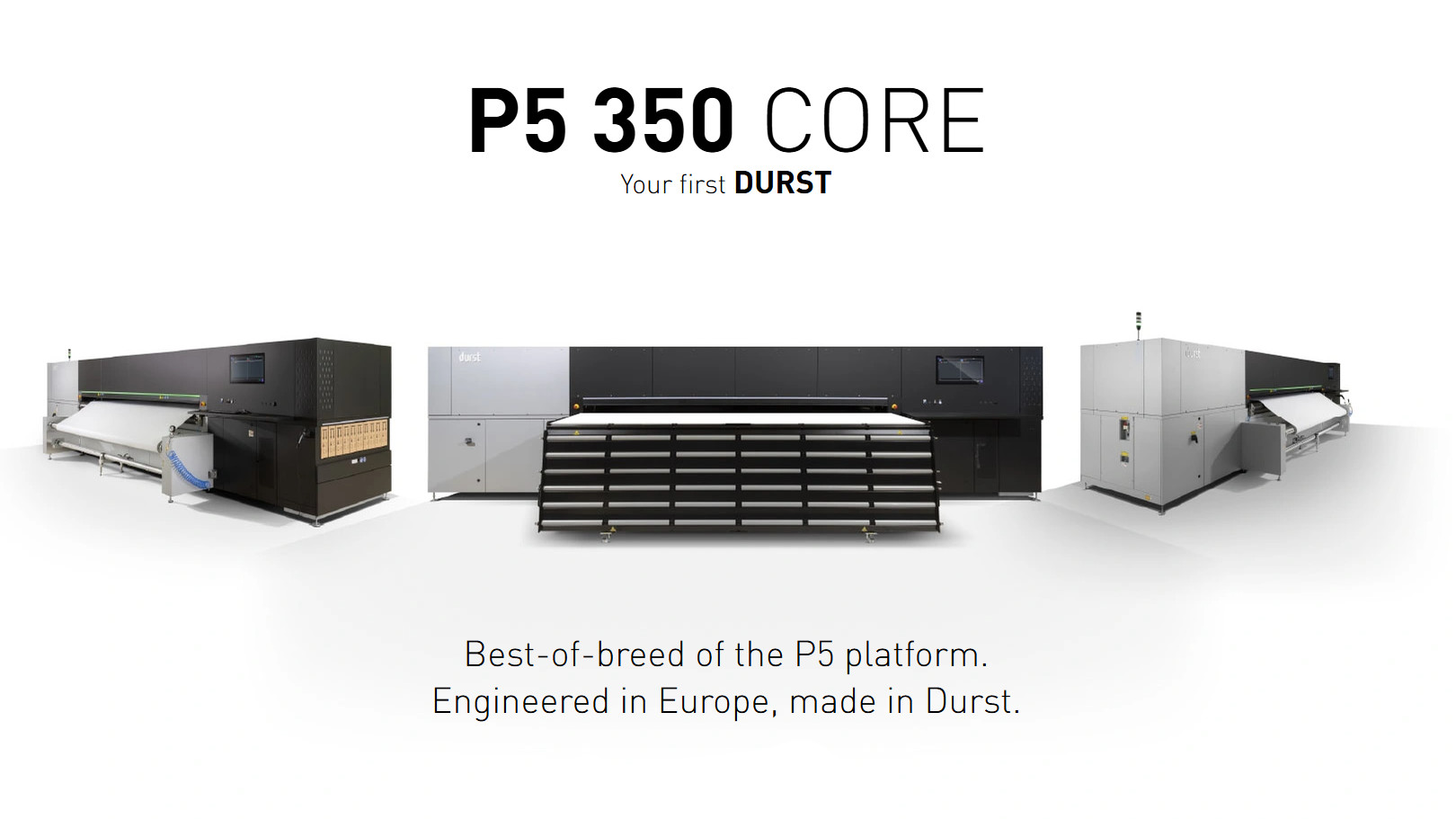

Durst P5 350 CORE
A platform built to evolve with you.
XT is Durst’s commitment to the installed base: continuous development, software-driven performance optimisation, and upgradeability across the P5 platform. CORE is XT — included, factory-fitted.
01
Continuous development
Improvements developed across the P5 platform are made available to the installed base — by design, not by chance.
02
Performance optimisation
Software-driven gains in solid-colour uniformity, smoothness and stitching behaviour through Dynamic Density Compensation and Advanced Droplet Placement.
03
Upgradeability
Retrofit and upgrade paths protect customer investment over a long system lifecycle and reduce replacement cycles.
BEST-OF-BREED CONFIGURATION
Proven technologies. Bundled into one platform.
CORE combines the most successful technologies and features from across the P5 portfolio into one integrated machine — your point of entry into the Durst system environment.
High-performance vacuum belt
Expanded material flexibility — handles a broader range of substrates with stable handling and consistent registration.
Latest software architecture
Future-update ready — performance updates and extended application capabilities can be deployed across the installed base.
New machine design
Reworked operator handling, simplified daily access, and reduced service effort by design — engineered for shop-floor reality.
Built on the proven P5 platform.
855
P5 systems installed worldwide
419
P5 systems in Europe
96%
avg. technical system availability
243K
sqm avg. annual output per system
80%
countries served by Durst service network
Kyveris-ready.
CORE is built on an open architecture — sensor and data layer compatible, with open APIs and an integrated end-to-end workflow.
Kyveris connects machines, jobs, materials and production results across systems, enabling continuous analysis, process optimisation and measurable productivity improvements.
The Open Software Initiative(OSI) provides documented interfaces and open APIs for integration with MIS, workflow and finishing systems — connect existing environments without proprietary lock-in.
PRODUCTIVITY · SERVICE · SUSTAINABILITY
The operational case is measured, not claimed.
325 sqm/h
Peak speed 170 sqm/h production mode
6.00 ml/m²
Up to 30 % savings via workflow
3.17/year
Service interventions per system · 70 %+ resolved remotely
45 min
Avg. first response
· 470 service experts
· 80+ countries
CONFIGURATIONS
Configure CORE the way you produce.
Six configurations span manual, ¾ automation and full automation — boards or hybrid.
Same core architecture, same XT software — different operator and production logic.
Boards
- Roller tables, manual operation
- Continuous board feeding · 2 tracks
- Optional: Multitrack 6, single/dual track corrugated

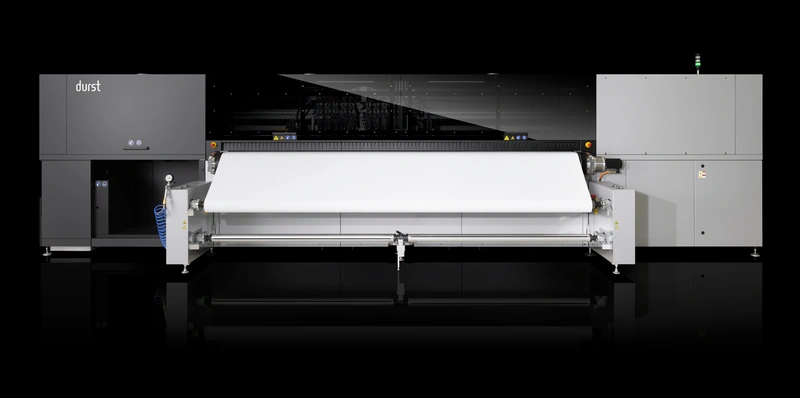

Hybrid
- Roller tables · 2 tracks · Roll tool
- Continuous board feeding
- Optional: Multitrack 6, dual roll, Multiroll, single/dual track corrugated
¾ Automation Boards
- Roller table for manual feeding
- P5 Automat stacking unit
- Continuous board feeding · 2 tracks
¾ Automation Hybrid
- Roller table · P5 Automat stacker
- 2 tracks · Roll tool
- Optional: Multitrack 6, dual roll, Multiroll
Full Automation Boards
- P5 Automat feeding & stacking units
- Continuous board feeding · 2 tracks
- Optional: Multitrack 6 (manual op.), single/dual track corrugated
Full Automation Hybrid
- P5 Automat feeding & stacking units
- 2 tracks · Roll tool
- Optional: Multitrack 6 (manual op.), dual roll, Multiroll
PRODUCTIVITY · SERVICE · SUSTAINABILITY · TECHNICAL DATA
Specifications.
Max. productivity | Peak speed | up to 325 sqm/h |
| Production mode | up to 125 sqm/h |
Resolution | 700 x 1200 dpi – 900 x 1200 dpi | |
Drop size | 7 pl | |
Color channels | up to 10 (CMYK + Lc Lm + W + special) | |
Print heads | Ricoh Gen 5 | |
Max. printing width | Boards | 3,500 mm (11.48 ft) |
| Single roll | 3,470 mm (11.38 ft) |
| Dual roll | 1,625 mm (64 in) |
Max. roll weight | upper and lower each | 300 kg (660 lbs) |
Max. roll diameter | 350 mm (13.7 in) | |
Roller tables length | Std. 75 / 140 cm · Opt. up to 2.2 m | |
Ink consumption | 6.00 ml/m2 base · up to 30% savings via workflow | |
Software | Durst Workflow · Analytics · Kyveris-ready | |
Sustainability | GREENGUARD Gold · VOC free · REACH compliant · ISO 20690 · CSRD-aligned |
