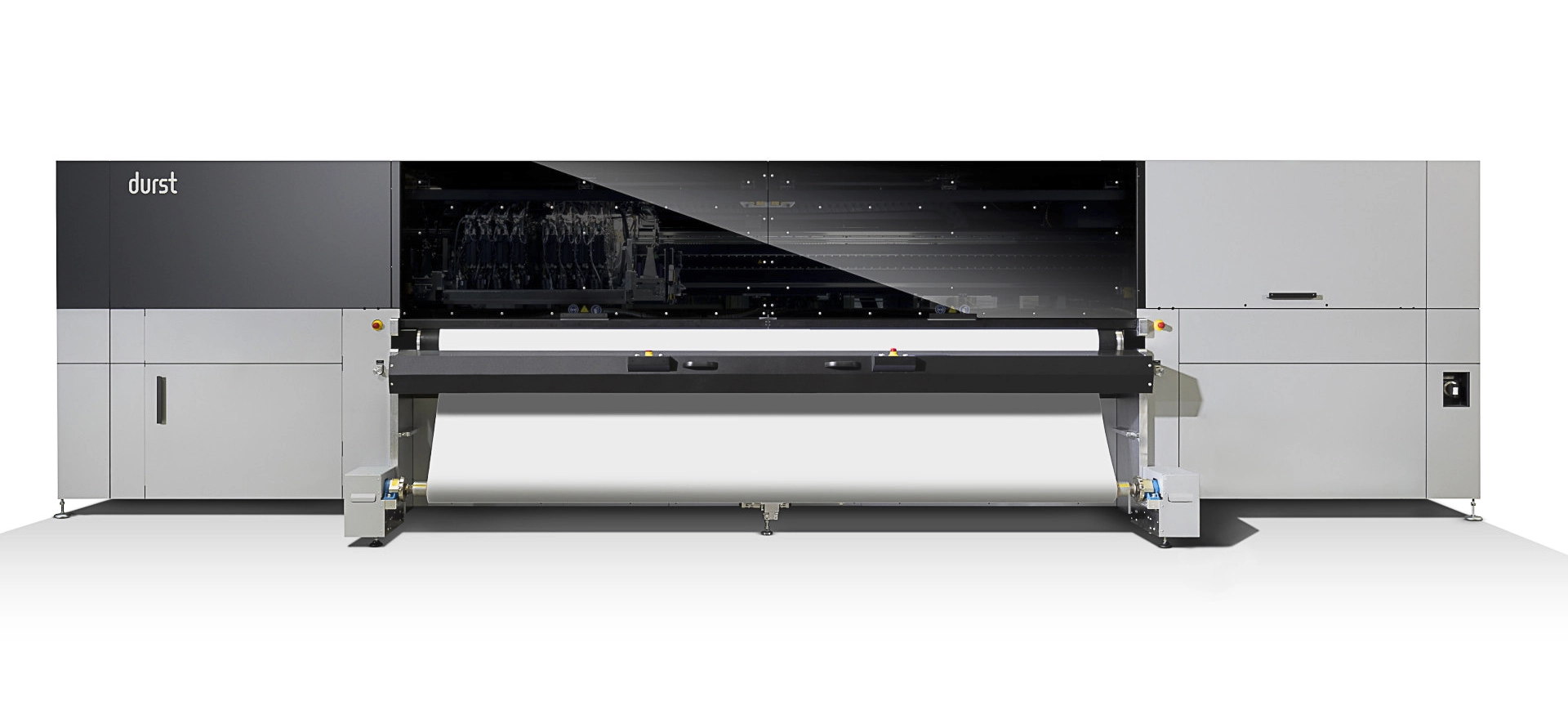

DURST P5 350 HSR
The high speed 3.5 m roll-to-roll LED printer
The P5 350 HSR is the high productive solution for roll-to roll printing up to 3.5 m and reaches a productivity up to 842 sqm/h for unattended production.
- HIGH PRODUCTIVITY UP TO 842 sqm/h
- PRECISE MEDIA TRANSPORT FOR UNATTENDED PRODUCTION
- MEDIA TENSION EQUALIZATION
- DUAL ROLL OPTION
- MULTIROLL FEATURE FOR FAST MEDIA CHANGE
- INTEGRATED AUTO CLEANING BELT FOR MESH PRINTING
- MASTER ROLL FOR LONG RUN UNATTENDED PRODUCTION
- INTEGRATED CUTTING SYSTEM
- SUBSTRATE DIMENSION MEASUREMENT
INKS
Our dedicated LED ink system for P5 provides optimum performance for a wide range of board and roll applications:
SOFTWARE
Our Durst Software enables to efficiently streamline printing production and processes:
PRINTING SPECIFICATIONS P5 350 HSR/I | ||
Productivity | P5 350 HSR/i D4: up to 845 m2/h | P5 350 HSR/i: up to 670 m2/h |
Resolution | Up to 900×1200 dpi | |
Printheads | Ricoh | |
Standard colors | Cyan, Magenta, Yellow, Black | |
Additional color options | Light Cyan, Light Magenta, White, Varnish, | |
Substrate dimension measurement | included | |
| ||
MEDIA SPECIFICATIONS P5 350 HSR/i | ||
Printing width in single roll | up to 3.500 mm (137.8 in.) | |
Printing width in dual roll | up to 1,625 mm (64 in.) | |
Maximum roll weight | 280 kg (617 lbs) with carbon axle | |
| 260 kg (573 lbs) with aluminium axle | |
Maximum roll diameter | 350 mm (13.8 in.) | |
Roller tables length | From 900 mm (35.4 in) up to 2300mm (90.5 in) | |
FEATURES
DUAL ROLL
DOUBLE SIDE PRINTING
SAVE INK REFILL SYSTEM
MASTER ROLL SYSTEM
HIGH SPEED
MESH PRINTING
EDGE HOLDERS
CUTTING SYSTEM
APPLICATIONS
PACKAGING
- Displays
- Plastic & Polypropylene
- Wood
- Corrugated
SIGNAGE POP/POS
- Billboars/Posters
- Retail
- Trade shows
- Outdoor advertising
- Special effects
INDUSTRIAL
- Industrial decoration
- Flooring
- Wall coverings
- Facades
- Furnishing
